WTV-40 - 40' - Water Treatment Vessel (Larger vessels available)

WTV-40 - 40' - Water Treatment Vessel (Larger vessels available)

Product Highlights and Innovations: Vessel is designed to be a mobile platform for the purifying saltwater or freshwater in disaster areas to provide drinking water. Various desalination and reverse osmosis purifying systems are installed on the vessel . Capacity of flow can vary depending on your requirements and budget. Rates of 6,500 - 52,000 Gallons/Day available.

Note that larger flow rates may require larger vessel dimensions to accommodate equipment.

Aluminum Hull Constructed to meet ABYC, ABS, Veritas and Lloyds Standards.

The Enclosed Pilot House design or open center console layouts available.

Aluminum 5086-H116 Grade Aluminum or Fiberglass Construction
Hull Length 37' 6''
LOA 40' 3''
Beam 10'
Approx Weight 14,000 lbs.
Draft w/ Twin Outboards 27''
Dead Rise 18°
Fuel Capacity 200 gallons
Person Capacity 10
Boat Height (from waterline) 10'
Outboard Engines 2 x 300 HP

For a hard copy brochure:

Thank you!

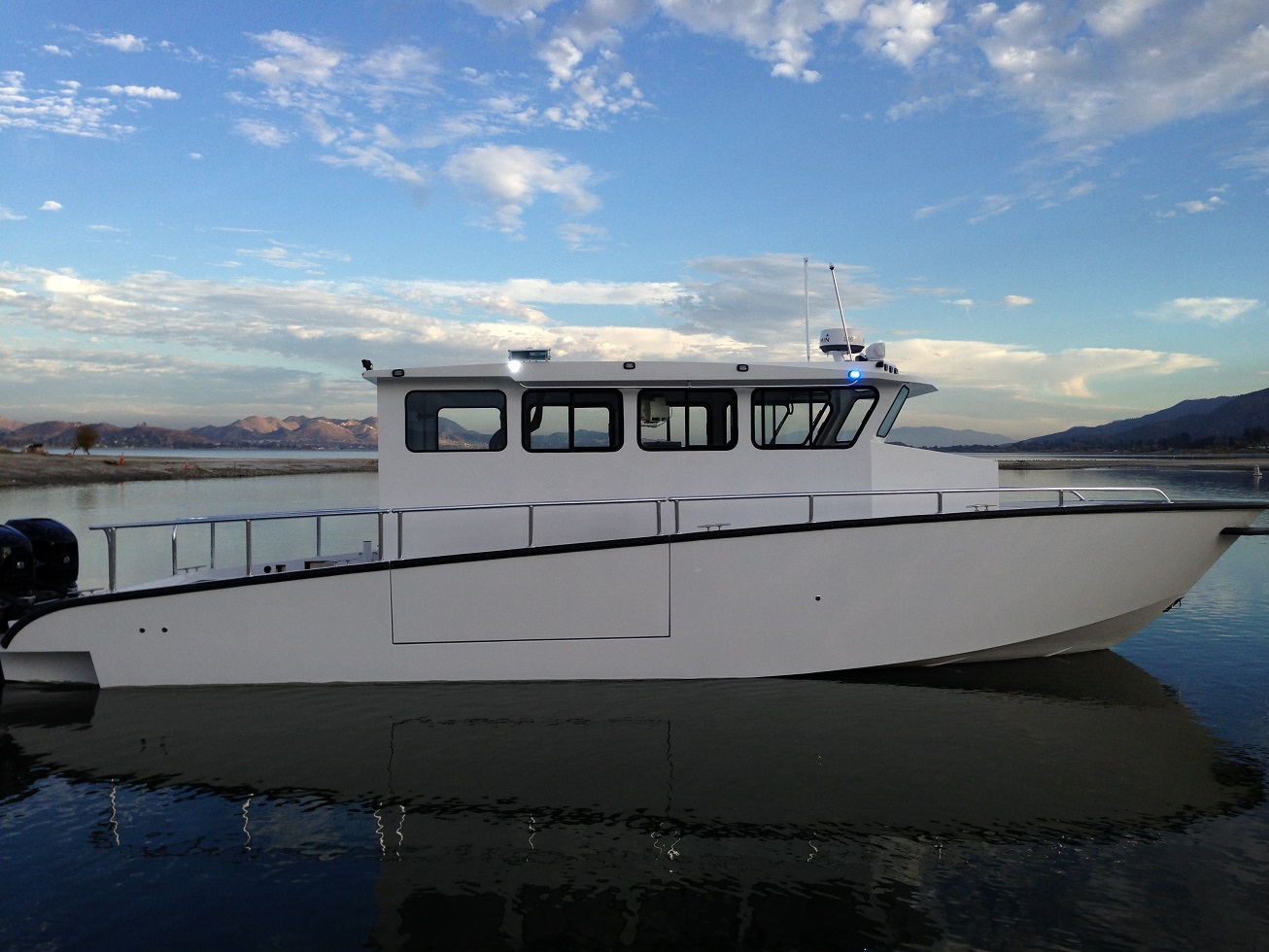

AR-40 Running


AR-40 Inside Pilot House
