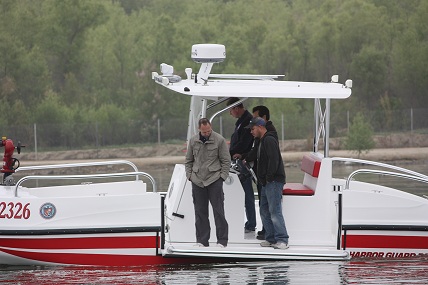

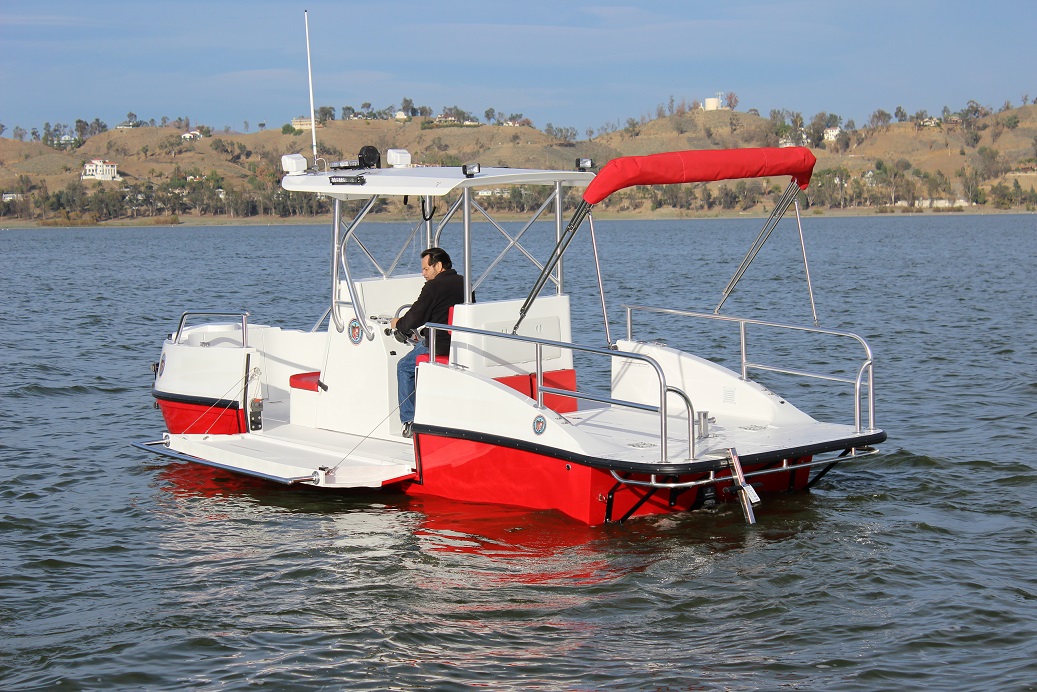

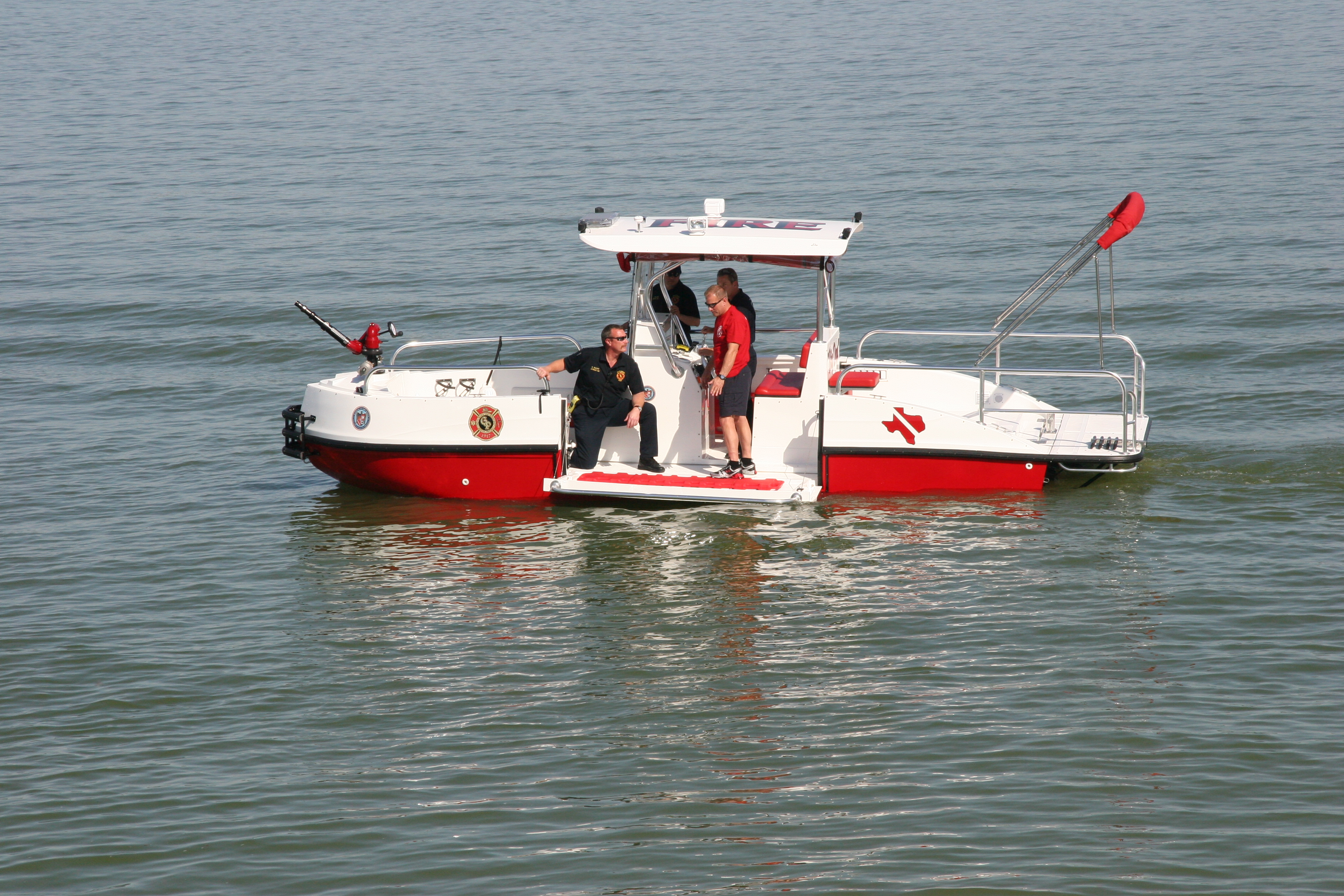

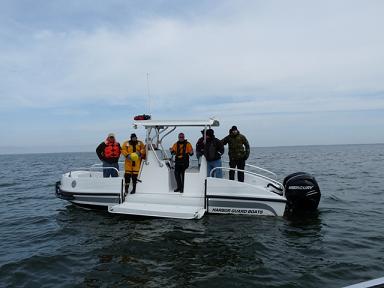

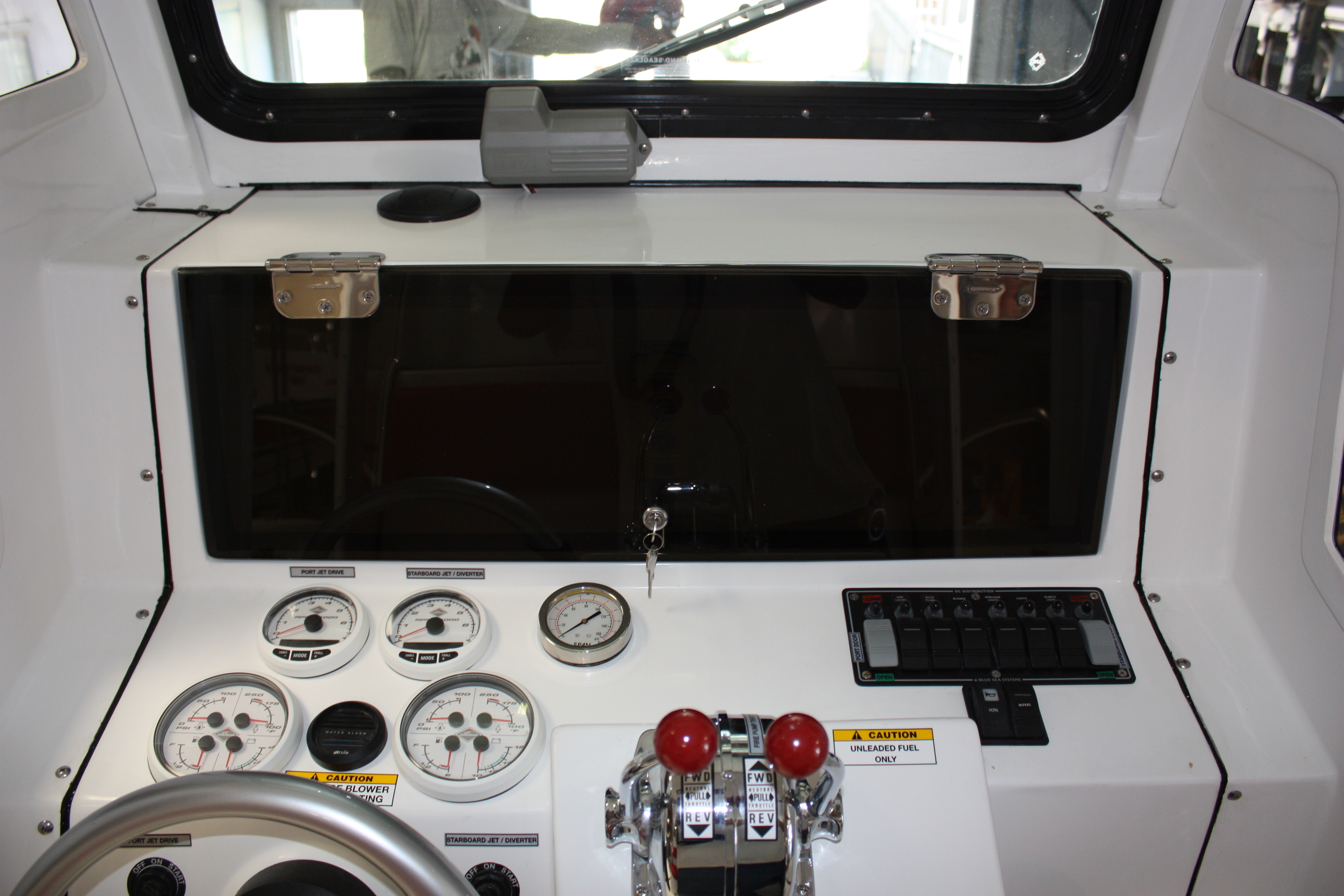

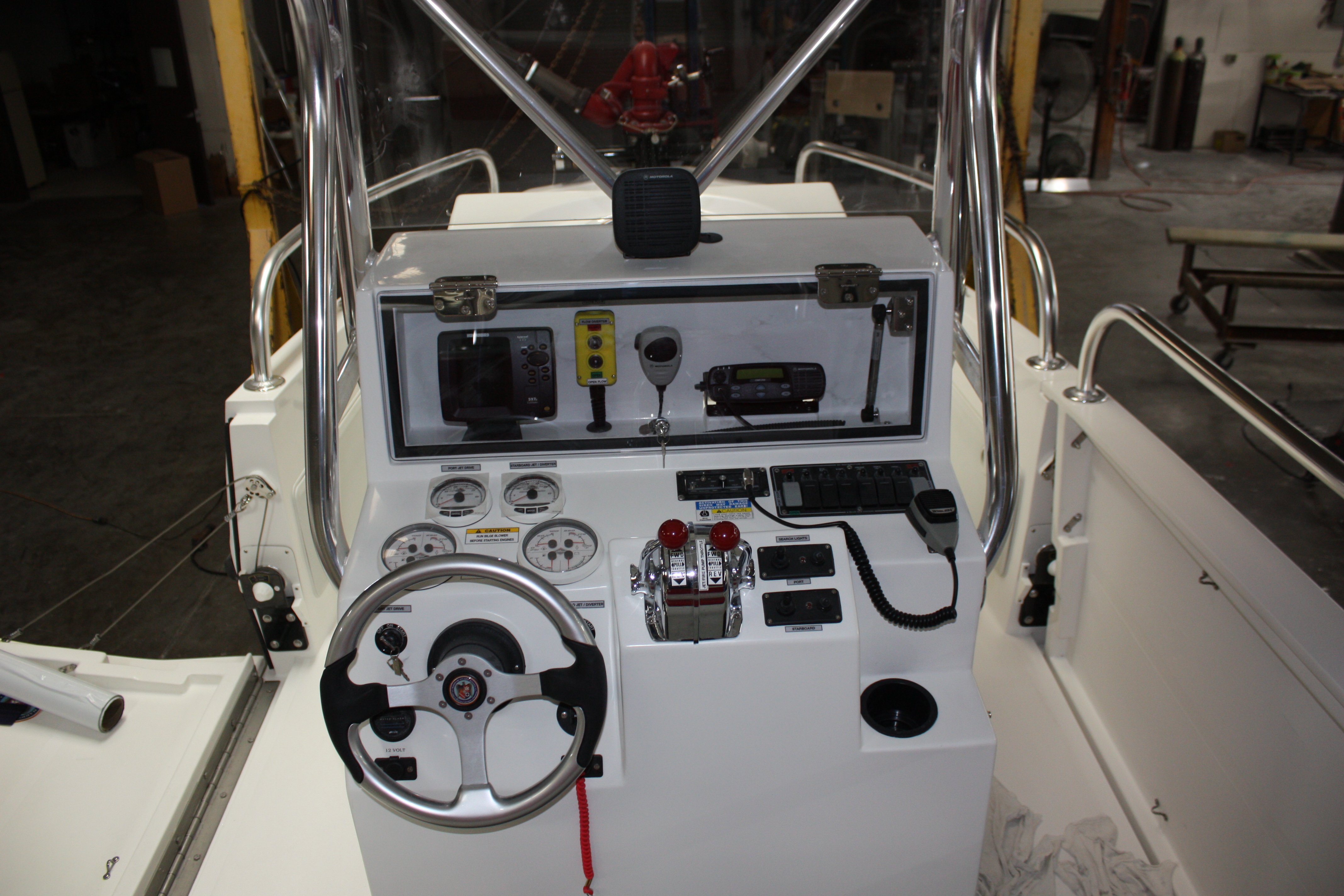

Product Highlights and Innovations: Patented - Dual 8' collapsible dive platform doors. These doors are electrically controlled from the drivers helm with a manual override. The doors (foam filled) float on the waterline when completely lowered providing multiple patient access in a rescue situation. These doors also provide an unmatched flat waterline platform for dive , rescue and recovery missions.

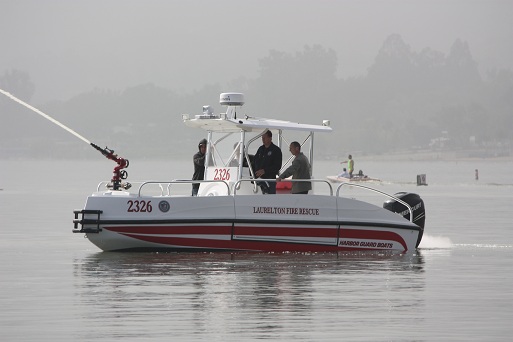

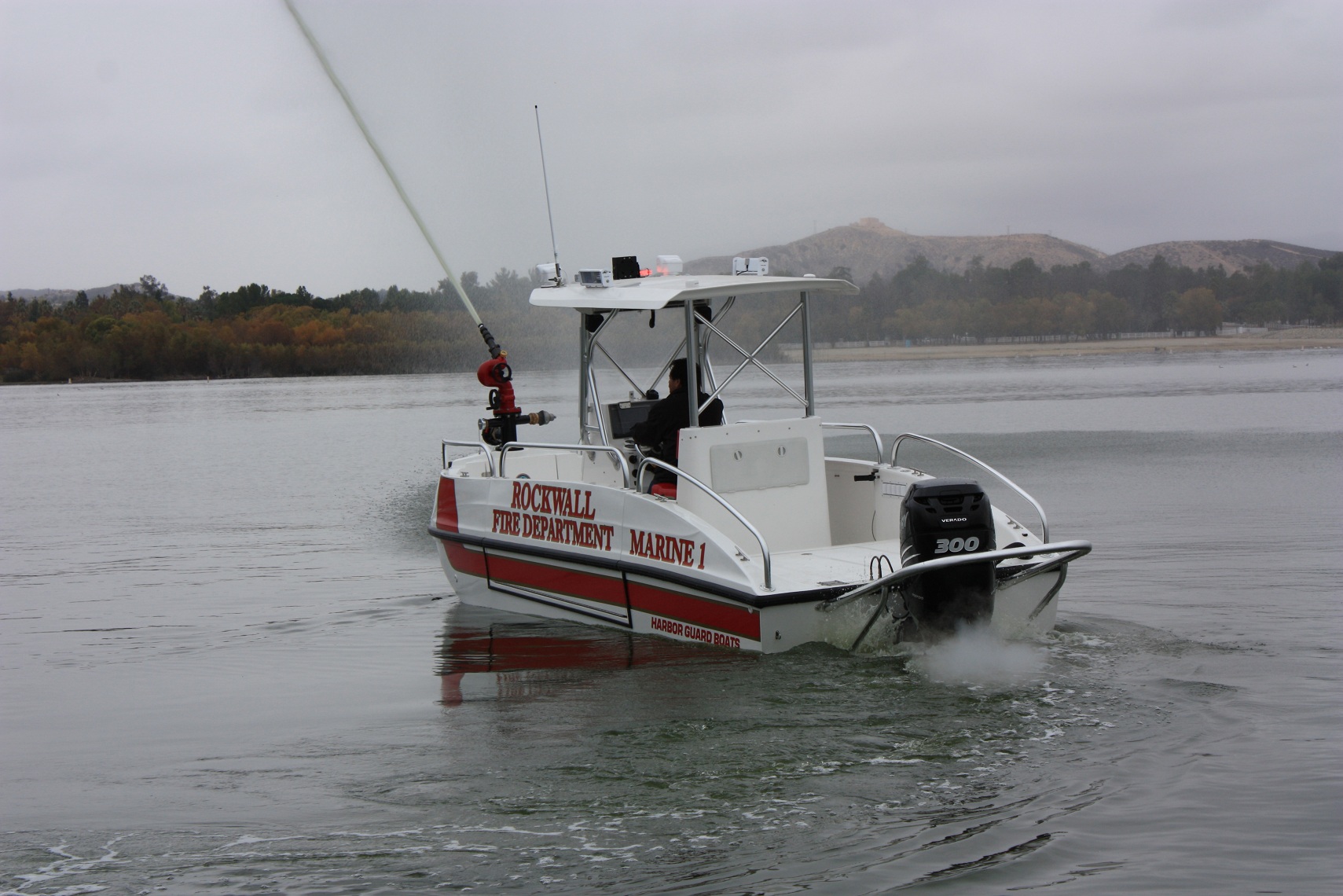

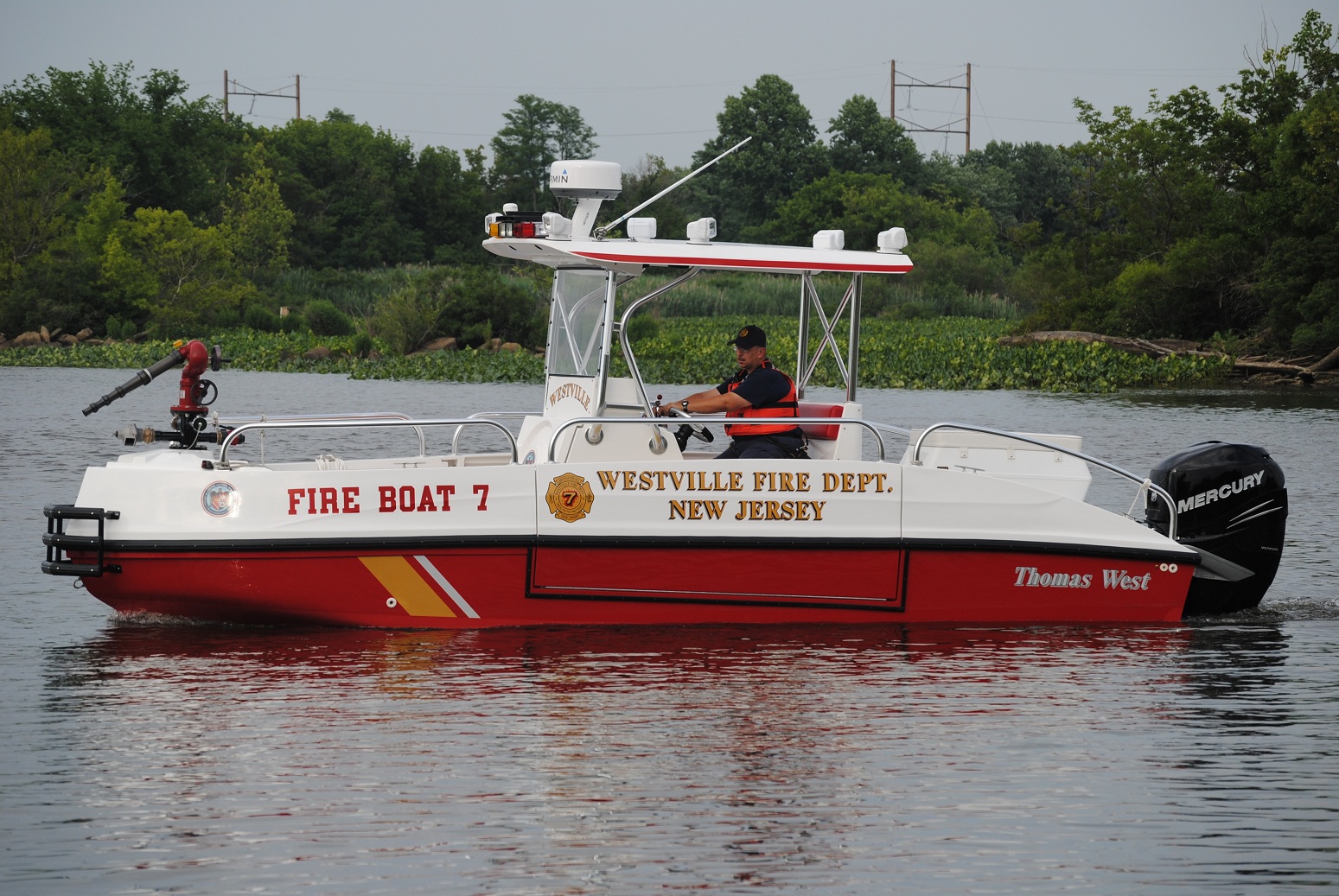

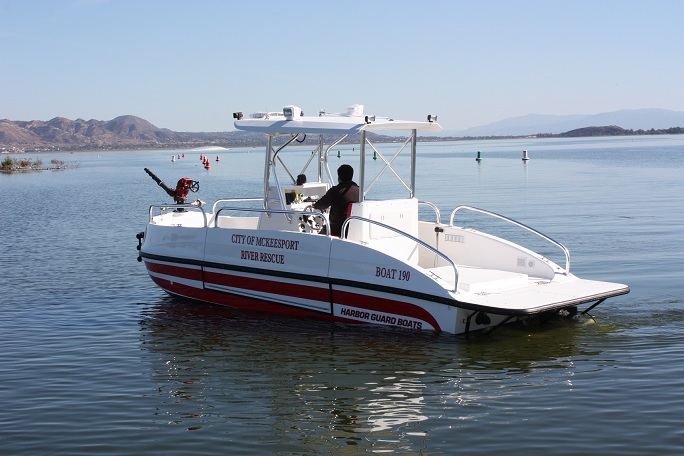

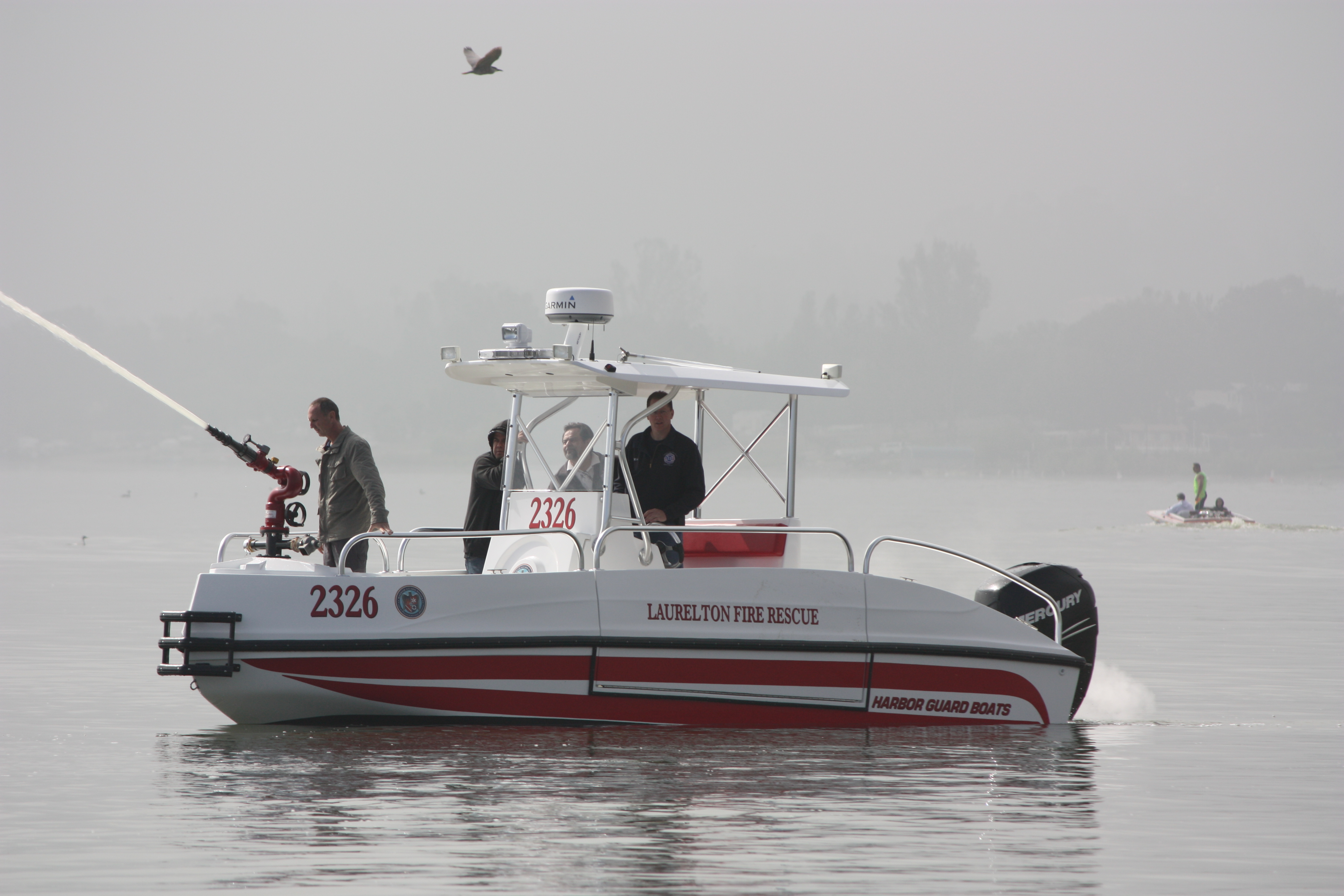

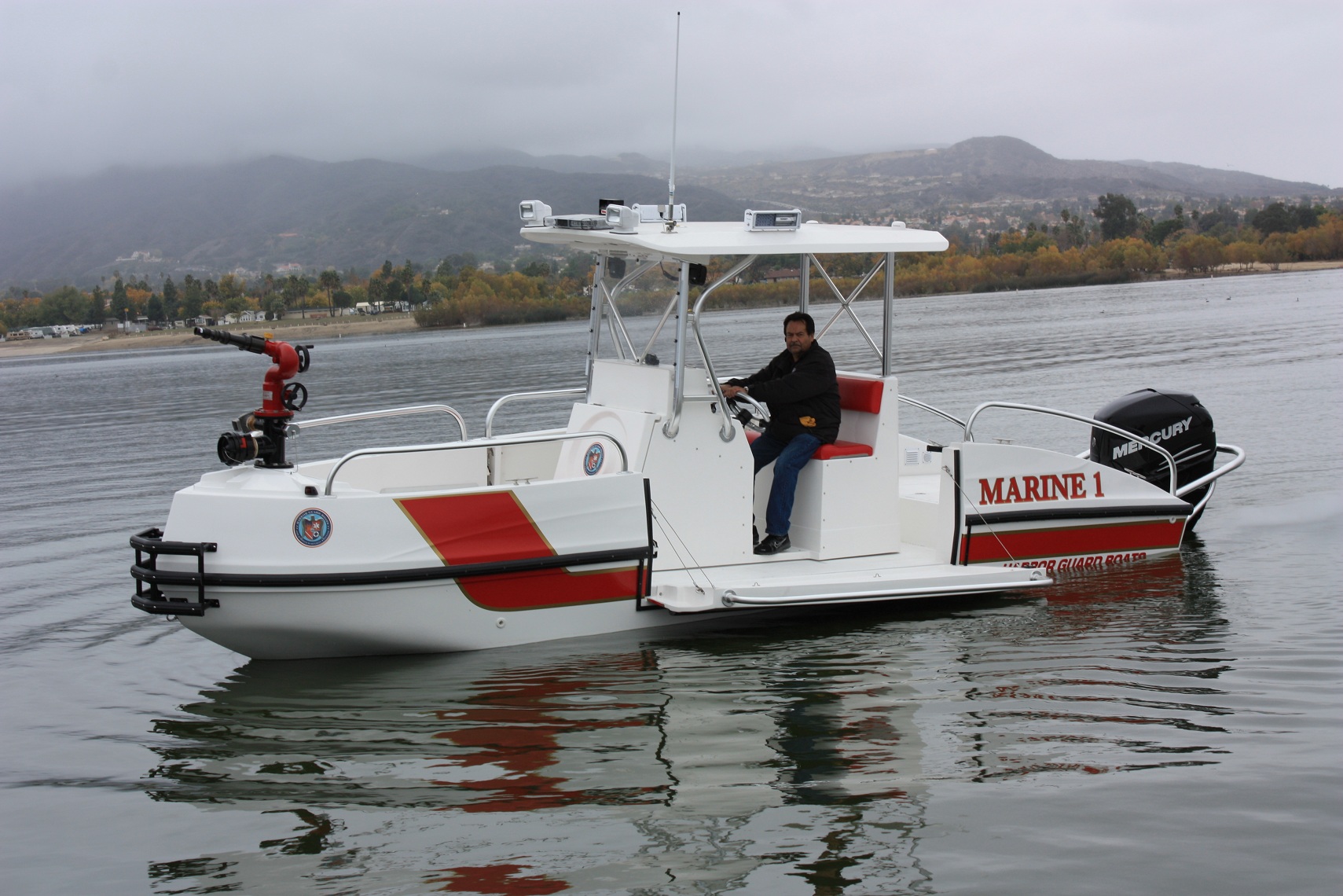

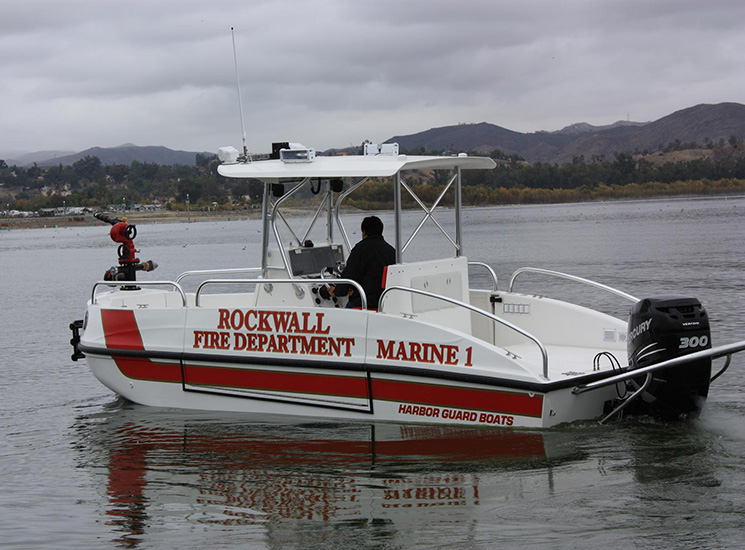

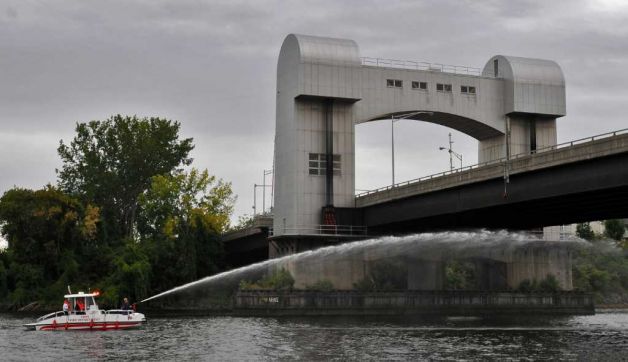

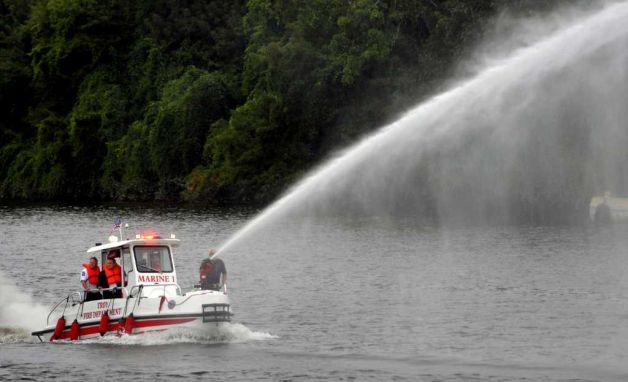

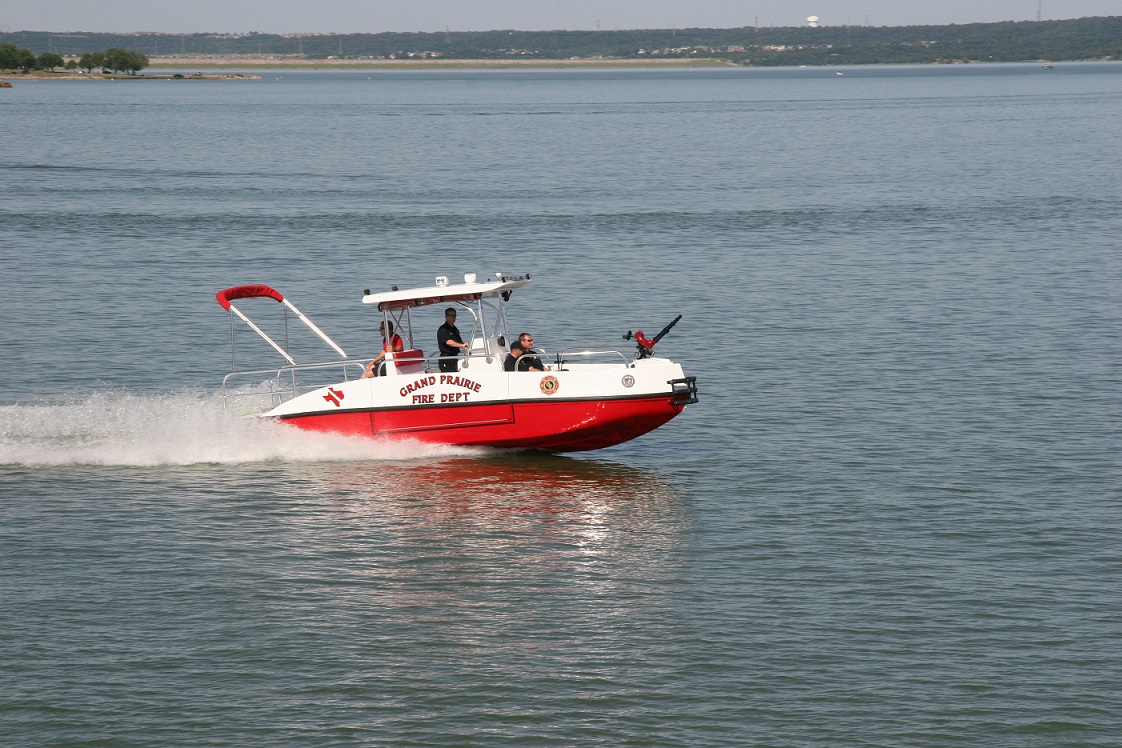

The FIREHAWK (Fire model) also provides a 1500 GPM jet fire pump and bow mounted fire monitor for fire suppression (water and foam) and "pump out" capabilities. The below deck fire pump is directly plumbed through the keel. The pump is always primed and can supply water with a turn of a key.
Twin V8 Jet drives can also be installed One jet drive would be utilized for fire suppression , diverting 100% of flow to the deck monitor. Flow is 1500 GPM. The second jet drive is used to keep the boat on station and to manuever while flowing water.
2/3's of the hull is foam filled. Making the boat "unsinkable". The deck is also self bailing with the open transom design and with the side dive doors allowing water to escape from the deck.
Hull Length | 24' |
LOA with Outboard/s | 24' |
LOA with Jet Drives or I/O | 26' |
Beam | 95'' |

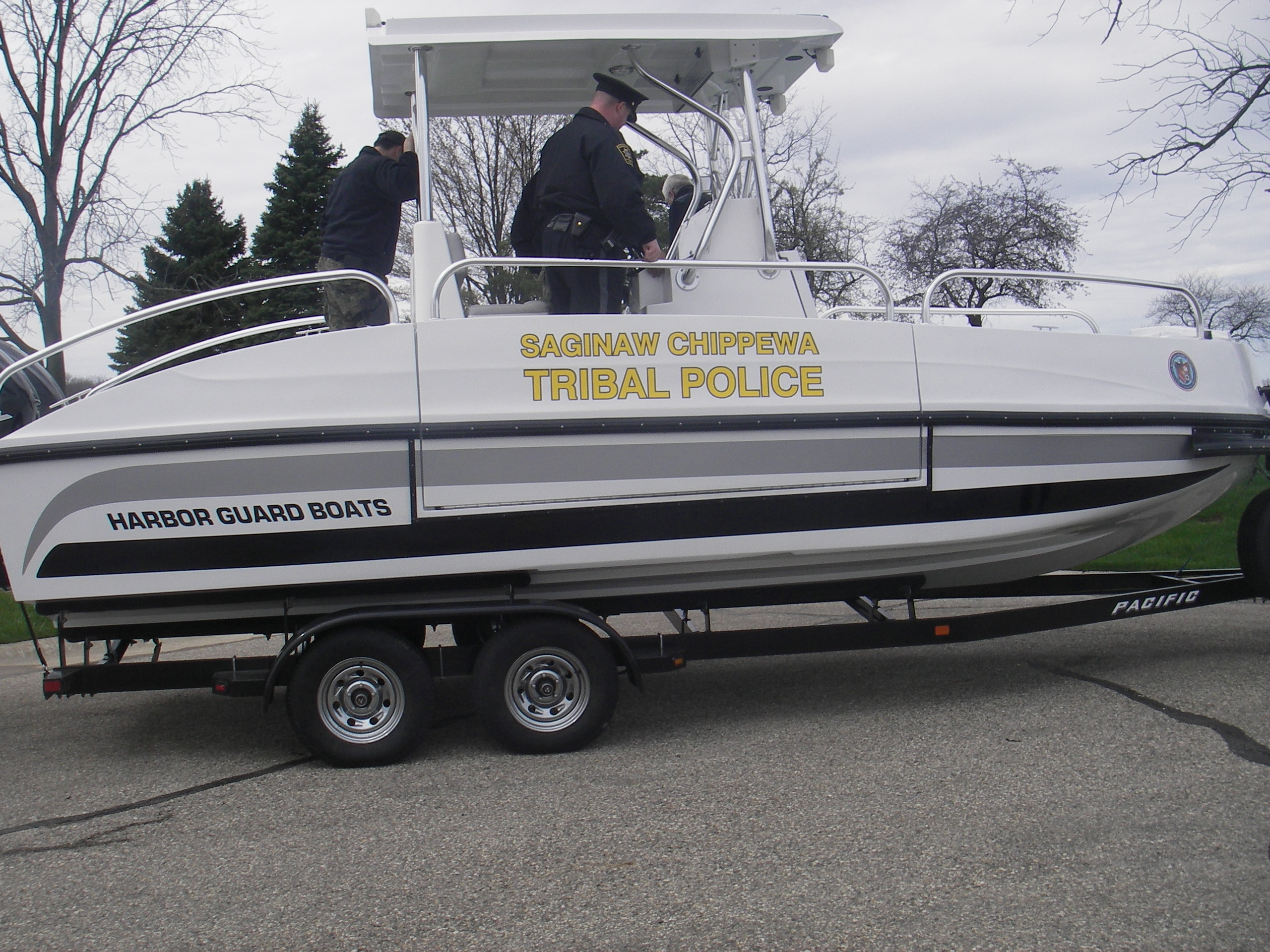

Overall Height on Trailer | 11'9'' |
Transom Hieght | 26'' |
Draft (at rest with jet drives) | 18'' |
Draft (with Outboards or I/O | 19'' |
Dry Weight (approx) | 5,500 lbs. |
Load Capacity (gross weight) | 4,500 lbs. |
Towing Capacity | 10,000 lbs. |
Fuel Capacity | 100 Gallons |
